G-Floor™ Roll-out Floor Cover & Protector

MORE PEOPLE LOOK INTO YOUR GARAGE THAN ANY OTHER ROOM IN YOUR HOME

This durable seamless product transforms your garage into
a showroom for your vehicle in just minutes!

Garage Strategies Inc. offers . . .

G-Floor™ Heavy Duty Roll-Out Polyvinyl Floor Protector

• G-Floor is stocked and ready to go in (3) stock sizes, in the grey coin pattern.
• Three rolls 8 feet wide x 22 feet long would outfit a 22' x 24' garage, wall to wall.
• Consider two rolls, one positioned under each vehicle for effective year-round benefits.

Residential Garage - Commercial - Industrial - Kennel - Catering - Hotel - Classroom

BIG SAVING$ - EACH ROLL - FOR A LIMITED TIME!

G-Floor Grey Coin - Heavy Duty Grade

• Special Colors, add 10%

Racing Blue, Forest Green, Brick Red & Sandstone

• Heavy duty specially formulated polyvinyl floor protector

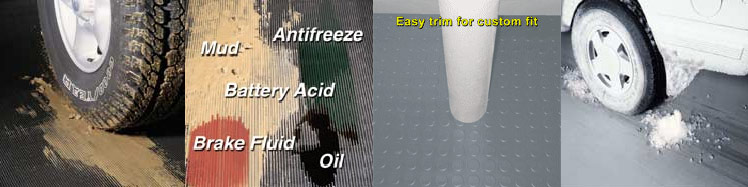

• Guards your floor year round from corrosive road materials
  such as antifreeze, oil, salt and battery acid
• Reduces dust travel and withstands contaminants found in garage and work environments
• Prevents concrete deterioration - Hides cracks and stains
• Easy installation – no adhesives required, easy to move, and easy to cut for custom fit
• Pattern reduces amount of dirt tracked into the home
• 5 Year Limited Warranty, from defects in material & workmanship
• Provides moisture barrier plus vapor barrier
• Slip resistant when wet
• Insulates, reduces noise
• Provides anti-fatigue benefit

Our Garage Floor Products Offer many features.

COIN PATTERN!
Stocked

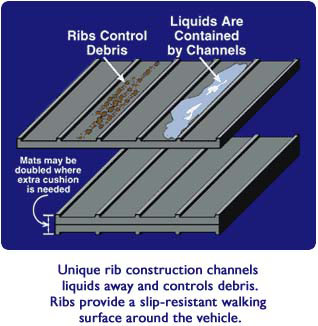

RIB PATTERN!
Special order
Commercial / Industrial
High quality flooring
available for a wide variety of
technical applications

Standard Product (Floor Covering)

• General purpose, fire retardant, flexible PVC formulated for good oil resistance.

• Material meets all safety regulations per Federal Vehicle Safety Standard No. 302.

• Material meets GM 9070P flammability test DNI (Does Not Ignite) denotes that
material does not support combustion during or after ignition.

• Material meets Ford specification BO 116-03 (interior vehicle applications)

Material:
Vinyl
Burn Resistance:
Cigarette and solder burn resistance
Asbestos-Free:
Product shall contain no Asbestos
Lead-Free:
Product shall contain no Lead

Typical Properties (.075)
ASTM Method

Specific Gravity, (+/-0.02)
1.30
D-792
Hardness, Shore A (+/-3)
81
D-2240
Tensile,PSI
2450
D-412
Elongation, %
375
D-412
100% Modulus,PSI
1200
D-412
Brittle Point, C
-35
D-746
Oxygen Index, %
23
D-2863
Oil Testing:
On 7 Days in IRM 902 Oil @ 60°C, 0.075
Tensil Retention, %
94.6
UL 1581
Elongation Retention, %
88.2
UL 1581
