| Hydraulic Vehicle Lifts
14 GREAT REASONS
TO
BUY A "CL 8,000 CSP"
- Hydraulic Cylinder Hidden Under Runway.
- Large Post Baseplates.
- Heavy-Duty Aircraft Carriers.
- 10 Automatic Safety Lock Positions.
- Removable Wheel Stops.
- 18 1/2" Wide Runways.
- Powder Coated Durable Finish.
- Simple Operation & Control.
- Detachable 37" Approach Ramps.
- ONE Step Caster Kit.
- THREE Steel Drip Trays INCLUDED!
- 1 Jack Tray INCLUDED!
- Portable Casters Included!
- Self-Lubricating UHMW Anti-Sway Slide Blocks.
|

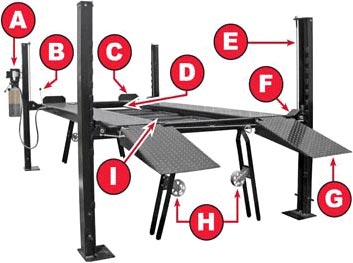

Information on the above highlighted features can be found below.
|
 |
110V OR 220V Power Unit
With The CL 8,000 CSP XLT you get to choose what type of Power Unit works best for you and your application! |
 |
 |
Single Point Lock Release
The Lock Release design on our 4-Post lifts makes disengaging the safety locks a fast, simple, ONE Step process! |
| |
 |
Car Stop Plate
4 Car Stop Plates are included to allow you to secure vehicles from the front and rear, preventing accidents and increasing safety! |
|
 |
Steel Jack Tray
A sliding, Heavy Duty Jack Tray is included to provide a platform for lifting vehicles off of the Runways as needed for maintenance. |
| |
 |
Heavy Duty Steel Aircraft Cables
Our Portable 4-Post Lifts utilize a Heavy-Duty Braided Steel Aircraft Cable driven design and use only one Hydraulic Cylinder. |
|
 |
Steel Block Safety Latch Locking System
The Locking System on the CL 8,000 CSP uses Heavy Duty Steel Components for maximum safety! |
| |
 |
37" Approach Ramps
With 37" Drive-On Approach Ramps and Diamond Plate design, getting vehicles onto this lift is easy! Low Profile vehicles are NO Problem! |
|
 |
Complete Polyurethane Coated Caster Kit
The Included Polyurethane Coated Caster Kits provide smooth rolling action when moving this lift. |
| |
 |
3 Steel Drip Trays
The 3 Included Drip Trays with the CL 8,000 CSP help collect waste oil and also help protect vehicle parked underneath!
|
|
|
|
|
Specifications |
Product Name: |
CL 8,000 CSP |
Price: |
$2,999.00 |
Maximum Capacity: |
8,000 lbs. |
Overall Height of Posts: |
82" |
Max. Lifting Height to
Top of Runways: |
76" |
Max. Clearance Under Runways: |
72" |
10 Safety Locking Positions: |
18", 35", 40", 44", 48"
52", 56", 61", 65", 70" |
Max. Lifting Height to Top
of Runways on Top Lock: |
72.5" |
Max. Clearance Under
Runways on Top Lock: |
68.5" |
Overall Lift Length w/
37" Approach Ramps: |
203" |
Overall Lift Length w/out
37" Approach Ramps: |
166" |
Overall Width Outside of Posts: |
102" |
Maximum Clearance Between Posts: |
92" |
Width of Runways: |
18.5" |
Outside Width of Both Runways: |
75" |
Clearance Between Runways: |
37" |
Gauge of Steel: |
3/16" |
Post Dimensions: |
4.5" x 6" |
Lifting Speed (Approx.): |
70 Seconds |
Power Unit Electric / Hydraulic |
110V OR 220V |
Shipping Weight (Approx.): |
1,750 lbs. |
Subject to change - For reference only |
Perfect for :
- Car Enthusiasts / Collectors
- Detailers / Body Shops
- Home Mechanics
- Fleet Owners
- Street Rodders
- Parking Garage Storage
- MAKE MORE ROOM!
|
|
4 Pc. Caster Kit Makes Lift PORTABLE!
|
|
| Single Point Lock Release!!! |
|
We offer delivery anywhere in Canada and installation locally! |
